Stabilizer Shaft Link Replacement Sway Bar Assembly

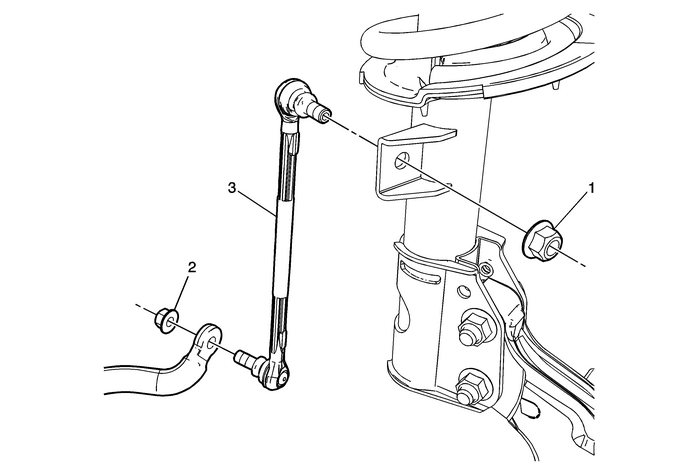

Stabilizer Shaft Link Replacement

Callout

Component Name

Preliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the tire and wheel assembly. Refer toTire and Wheel Removal and Installation.

1

Upper Stabilizer Shaft Link Nut

Caution:Refer toFastener Caution.

Note:Do not allow the stabilizer shaft link ball stud to rotate while removing or installingthe stabilizer shaft link nut.

Tighten

85-Y (63-lb-ft)

2

Lower Stabilizer Shaft Link Nut

Note:Do not allow the stabilizer shaft link ball stud to rotate while removing or installingthe stabilizer shaft link nut.

Tighten

75-Y (55-lb-ft)

3

Stabilizer Shaft Link
