Stabilizer Shaft Link Replacement Sway Bar Assembly

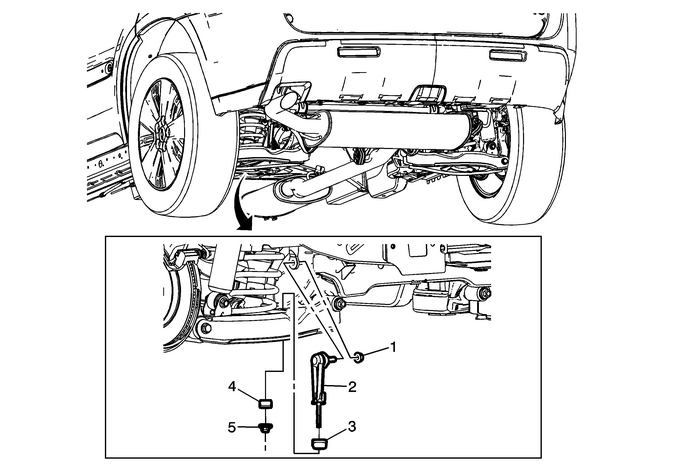

Stabilizer Shaft Link Replacement

Callout

Component Name

Preliminary ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the rear tires and wheel assembly's, if needed. Refer toTire and Wheel Removal and Installation
1	Rear Stabilizer Shaft Nut. Caution:Refer toFastener Caution. Procedure Note:Install the stabilizer shaft link in the lower control arm before installing it inthe stabilizer shaft. Loosen the rear stabilizer shaft insulators bolts. Refer toStabilizer Shaft Link Replacement.Use the proper size TORX©-bit to hold the stabilizer ball stud.Tighten 95-Y (70-lb-ft)
2	Stabilizer Shaft Link
3	Stabilizer Shaft Bushing (Upper)
4	Stabilizer Shaft Bushing (Lower)
5	Stabilizer Shaft Nut Tighten 15-Y (11-lb-ft)

Stabilizer Shaft Insulator Replacement Sway Bar Assembly

Stabilizer Shaft Insulator ReplacementCalloutComponent NamePreliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the front tire and wheel assemblies. Refer toTire and ...

Stabilizer Shaft Link Replacement Sway Bar Assembly

Stabilizer Shaft Link ReplacementCalloutComponent NamePreliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the tire and wheel assembly. Refer toTire and Wheel Remova ...
