Stabilizer Shaft Insulator Replacement Sway Bar Assembly

Stabilizer Shaft Insulator Replacement

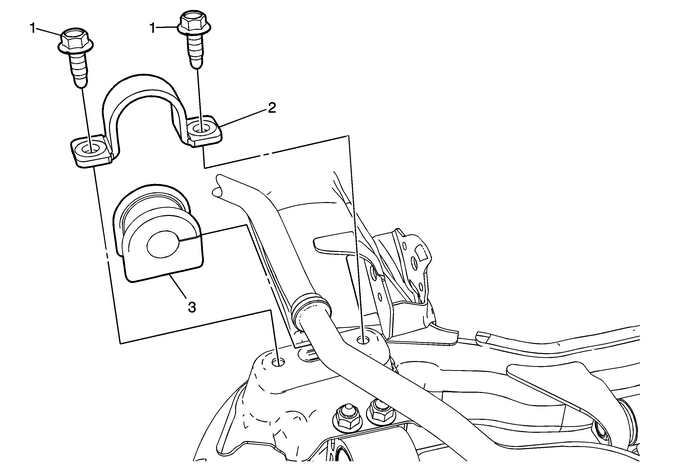

Callout

Component Name

Preliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the front tire and wheel assemblies. Refer toTire and Wheel Removal and Installation.

1

Stabilizer Shaft Insulator Bracket Bolt (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

50-Y (37-lb-ft).

2

Stabilizer Shaft Insulator Bracket (Qty:-2)

3

Stabilizer Shaft Insulator (Qty:-2)
