Chevrolet Equinox Service Manual: Special Tools Restraints Control

Chevrolet Equinox Service Manual / Body / Restraints / Special Tools Restraints Control

Illustration

Tool Number/ Description

Special Tools Restraints Control

EL-38826

J-38826

KM-799-3

SIR Deployment Harness

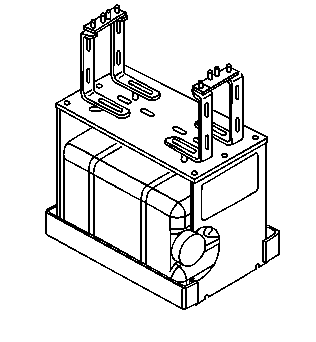

Special Tools Restraints Control

EL-39401-B

J-39401-B

SIR Deployment Fixture
