Chevrolet Equinox Service Manual: Special Tools

Chevrolet Equinox Service Manual / Powertrain / Engine / Special Tools

Illustration

Tool Number/ Description

Special Tools

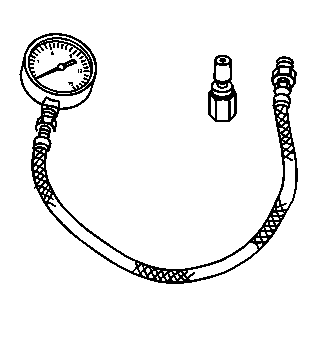

J-35314-A

Exhaust Back Pressure Gauge
