Chevrolet Equinox Service Manual: Special Tools

Chevrolet Equinox Service Manual / Chassis / Suspension / Special Tools

Illustration

Tool Number/ Description

Special Tools

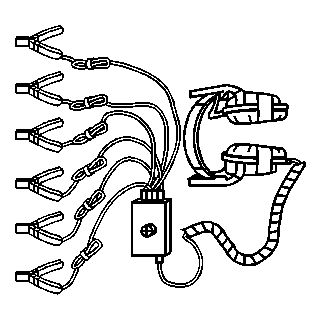

J-39570

Chassis Ear

Special Tools

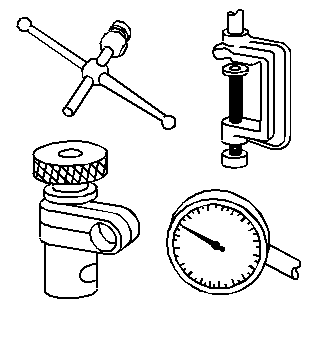

J-8001

Dial Indicator

Special Tools

IllustrationTool Number/ DescriptionCH-50986Ball Joint RemoverJ-42991Strut Rod Nut SocketJ-43631Ball Joint RemoverJ-44971Control Arm Bushing Remover/InstallerJ-45400Strut Spring Compressor ...

Measurement condition: Full tank of fuel, no passenger and placed on level surface.Trim Height SpecificationsTireModelPRZDP-235/60R17Equinox812± 12 mm (32.0 in± 0.5 in)835± 12 mm (32.9 in± 0.5 in) ...
