Chevrolet Equinox Service Manual: Special Tools

Chevrolet Equinox Service Manual / Chassis / Suspension / Special Tools

Illustration

Tool Number/ Description

Special Tools

CH-37043

J-37043

South America Use Local Equivalent

Park Brake Cable Release Tool

Special Tools

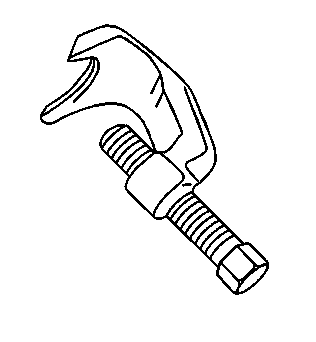

J-43631

Ball Joint Remover
