Side Object Sensing Alert Module Replacement

Side Object Sensing Alert Module Replacement

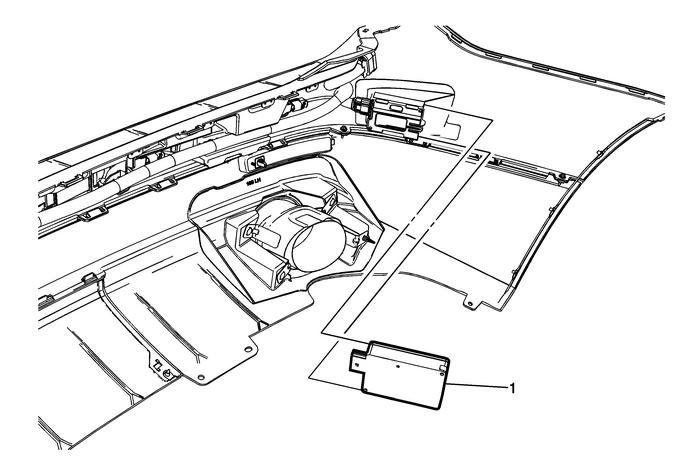

Callout

Component Name

Preliminary Procedure

Remove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.

1

Side Object Sensor Module

ProcedureDisconnect the electrical connector.For programming and set up, refer toControl Module References.Slide module to release from bracket.
Object Detection Description and Operation (Side Blind Zone Alert, UFT)
Side Blind Zone Alert Block DiagramB218RSide Object Sensor Module - RightA9BOutside Rearview Mirror - PassengerA11RadioB218LSide Object Sensor Module - LeftA9AOutside Rearview Mirror - DriverK40Seat M ...

Front View Camera Module Calibration
The calibration procedure will start automatically after SPS programming is complete.During this time the Lane Departure Warning amber indicator will illuminate.CalibrationThe calibration process for ...
