Secondary Timing Chain Tensioner Removal - Right Side Valvetrain Valvetrain Timing Timing Belt Tensioner

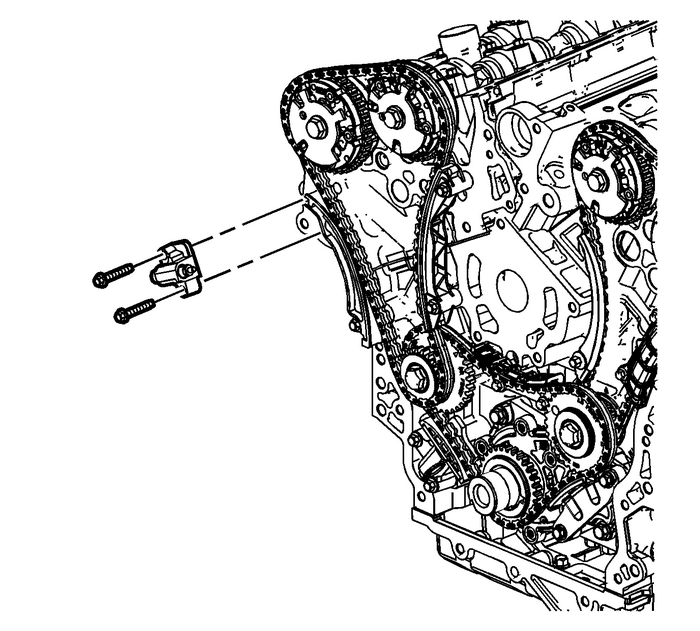

Remove the right secondary camshaft drive chain tensionerbolts.Remove the right secondary camshaft drive chaintensioner.

Secondary Timing Chain Tensioner Removal - Right Side Valvetrain Valvetrain Timing Timing Belt Tensioner

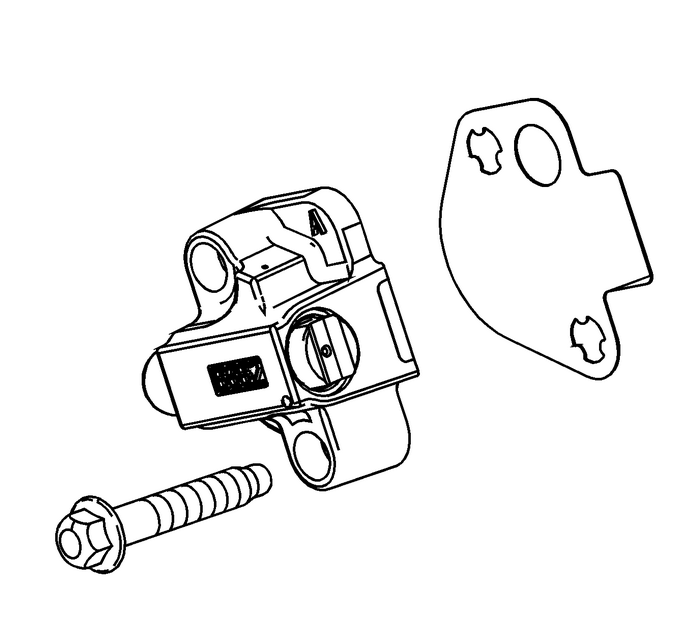

Remove and discard the right secondary camshaft drive chaintensioner gasket.Inspect the right secondary camshaft drive chain tensionermounting surface on the right cylinder head for burrs or anydefects that would degrade the sealing of the NEW right secondarycamshaft drive chain tensioner gasket.

Secondary Camshaft Drive Chain Shoe Removal - Right Side Valvetrain Camshaft

Remove the right secondary camshaft drive chain shoebolt.Remove the right secondary camshaft drive chain shoe. ...

Secondary Air Injection Check Valve Removal - Bank 1 Emissions Air Injection

Remove the secondary air injection-(SAI) checkvalve bolts-(1).Remove the SAI check valve-(2).Remove and discard the SAI check valvegasket-(3). ...
