Chevrolet Equinox Service Manual: Secondary Camshaft Intermediate Drive Chain Replacement - Right Side Valvetrain Camshaft
Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.Remove the right bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Removal - Right Side.Remove the right bank secondary camshaft drive chain shoe.Refer toSecondary Camshaft Drive Chain Shoe Removal - Right Side.Remove the right bank secondary camshaft drive chain guide.Refer toSecondary Timing Chain Guide Removal - Right Side.

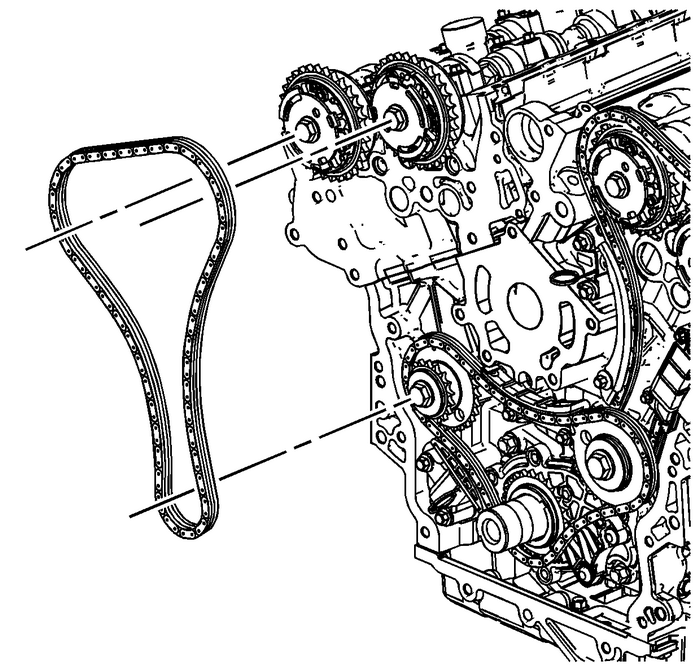

Remove the right bank secondary camshaft drive chain.Installation ProcedureEnsure the stage-1 camshaft timing is correct.Refer toSetting Camshaft Timing.
Install the right bank secondary camshaft drive chain. RefertoSecondary Camshaft Intermediate Drive Chain Installation - Right SideInstall the right bank secondary camshaft drive chain guide.Refer toSecondary Timing Chain Guide Installation - Right Side.Install the right bank secondary camshaft drive chain shoe.Refer toSecondary Camshaft Drive Chain Shoe Installation - Right Side.Install the right bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Installation - Right Side.Install the engine front cover. Refer toEngine Front Cover Replacement.
Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Right Side Valvetrain Camshaft
Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.Remove the right bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Removal - ...
Timing Chain Idler Sprocket Replacement - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain
Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.Remove the spark plugs in order to ease crankshaft/enginerotation. Refer toSpark Plug Replacement.Remove the righ ...
