Secondary Camshaft Drive Chain Shoe Removal - Right Side Valvetrain Camshaft

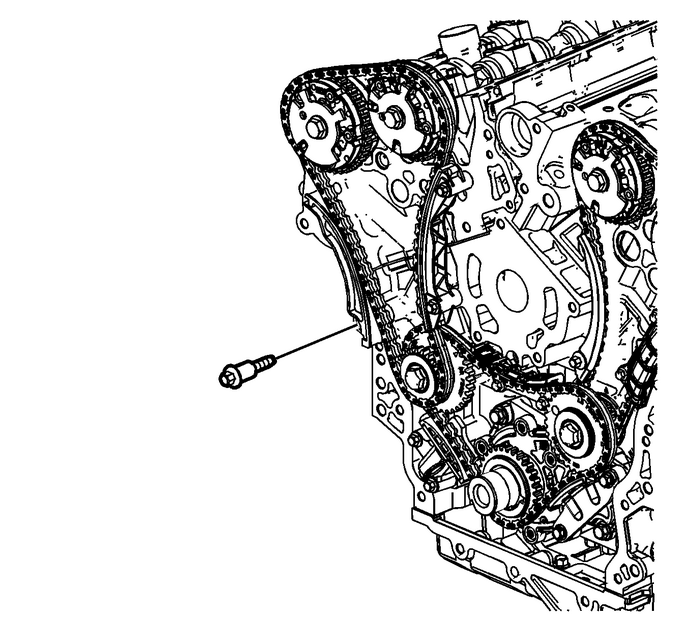

Remove the right secondary camshaft drive chain shoebolt.

Secondary Camshaft Drive Chain Shoe Removal - Right Side Valvetrain Camshaft

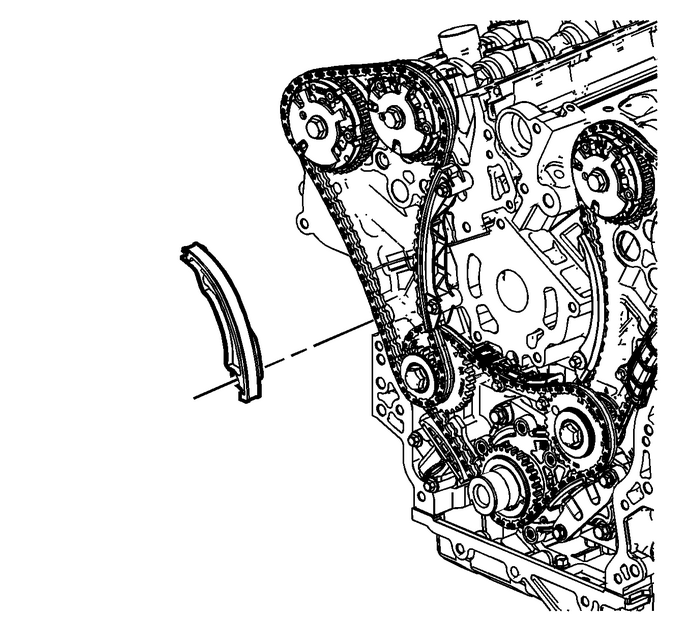

Remove the right secondary camshaft drive chain shoe.

Secondary Timing Chain Guide Removal - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain
Remove the right secondary camshaft drive chain guidebolts.Remove the right secondary camshaft drive chain guide. ...

Secondary Timing Chain Tensioner Removal - Right Side Valvetrain Valvetrain Timing Timing Belt Tensioner
Remove the right secondary camshaft drive chain tensionerbolts.Remove the right secondary camshaft drive chaintensioner.Remove and discard the right secondary camshaft drive chaintensioner gasket.Insp ...
