Secondary Camshaft Drive Chain Shoe Removal - Left Side Valvetrain Camshaft

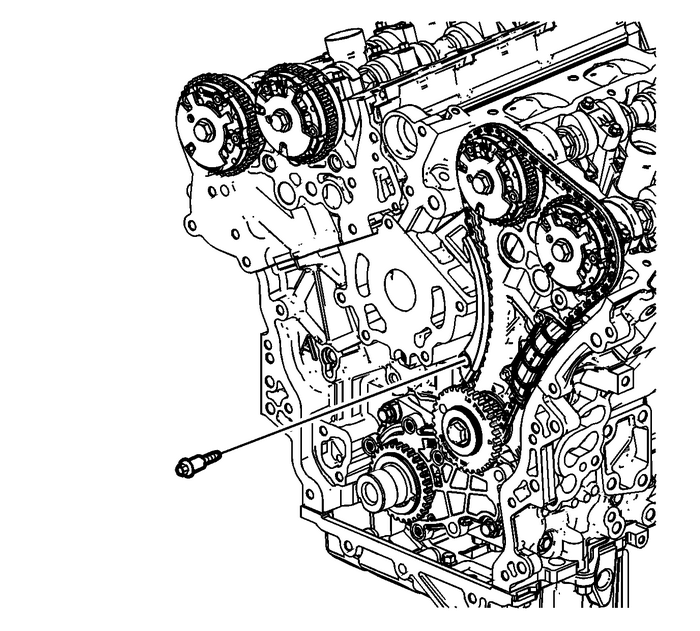

Remove the left secondary camshaft drive chain shoebolt.

Secondary Camshaft Drive Chain Shoe Removal - Left Side Valvetrain Camshaft

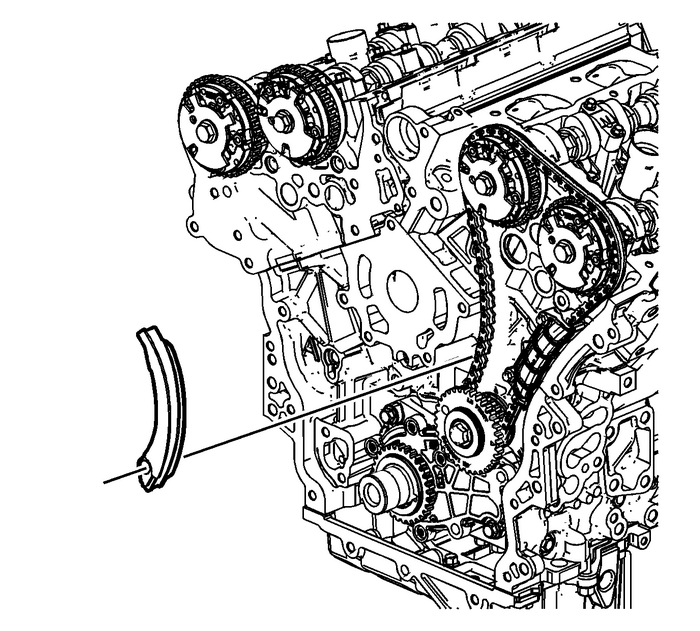

Remove the left secondary camshaft drive chain shoe.

Secondary Timing Chain Guide Removal - Left Side Valvetrain Valvetrain Timing Timing Belt/Chain

Remove the left secondary camshaft drive chain guidebolts.Remove the left secondary camshaft drive chain guide. ...

Secondary Timing Chain Tensioner Removal - Left Side Valvetrain Valvetrain Timing Timing Belt Tensioner

Remove the left secondary camshaft drive chain tensionerbolts.Remove the left secondary camshaft drive chaintensioner.Remove and discard the left secondary camshaft drive chaintensioner gasket.Inspect ...
