Secondary Camshaft Drive Chain Shoe Installation - Left Side Valvetrain Camshaft

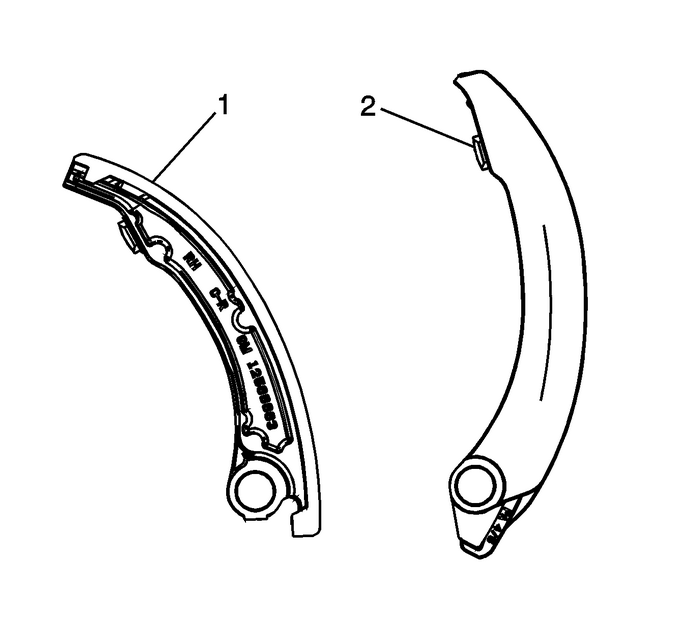

Ensure that the left secondary camshaft drive chainshoe-(2) is being installed.

Secondary Camshaft Drive Chain Shoe Installation - Left Side Valvetrain Camshaft

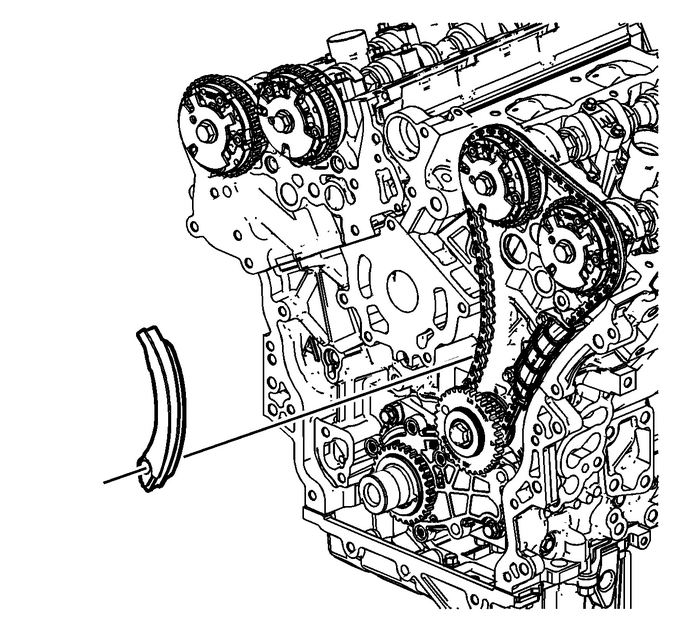

Position the left secondary camshaft drive chain shoe.

Secondary Camshaft Drive Chain Shoe Installation - Left Side Valvetrain Camshaft

Caution:Refer toFastener Caution.

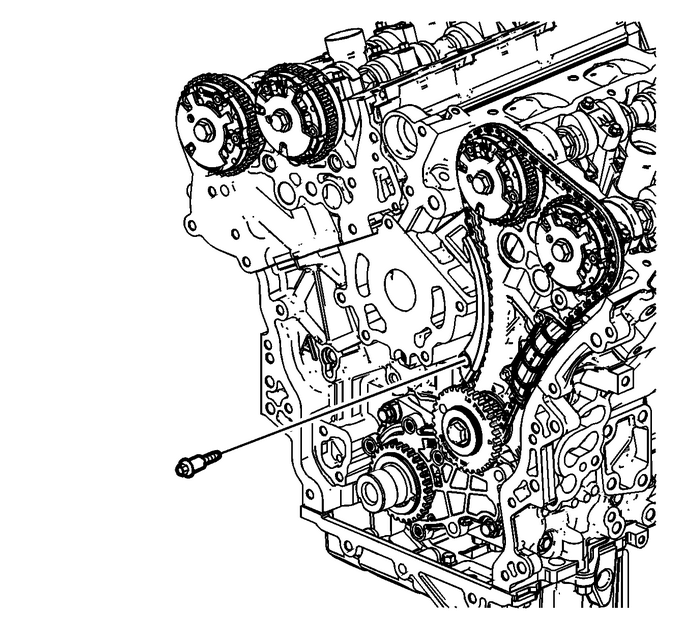

Install the secondary camshaft drive chain shoe bolt andtighten to25-Y(18-lb-ft).
