Secondary Air Injection Pipe Replacement Engine Control

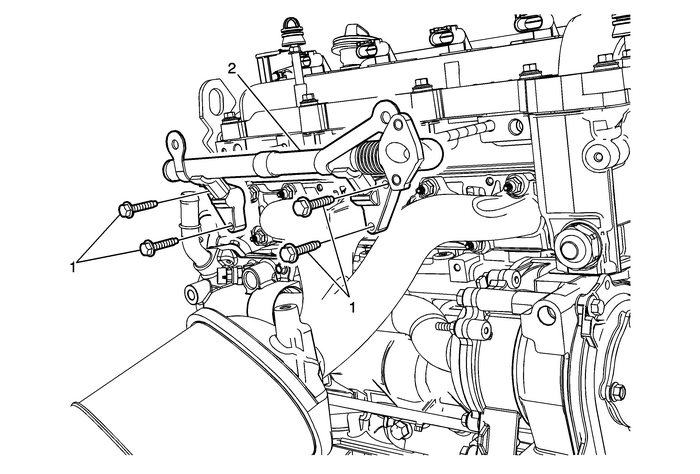

Secondary Air Injection Pipe Replacement

Callout

Component Name

Preliminary Procedure

Remove the secondary air injection check valve. Refer toSecondary Air Injection Check Valve Replacement

1

Secondary Air Injection Pipe Bolt (Qty: 4)

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in).

2

Secondary Air Injection Pipe
