Secondary Air Injection Check Valve Replacement Engine Control

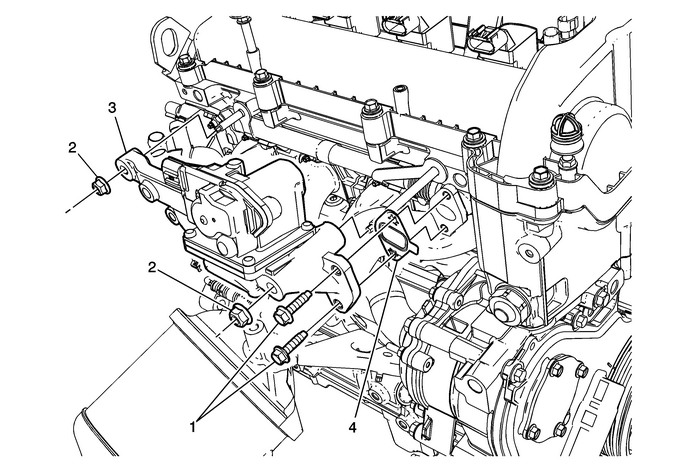

Secondary Air Injection Check Valve Replacement

Callout

Component Name

Preliminary Procedure

Remove the exhaust manifold heat shield. Refer toExhaust Manifold Heat Shield Replacement.

1

Secondary Air Injection Check Valve Bolt (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

10-Y (89-lb-in)

2

Secondary Air Injection Check Valve Nut (Qty:-2)

Tighten

22-Y (16-lb-ft)

3

Secondary Air Injection Check Valve

Procedure

Disconnect the electrical connector.

4

Secondary Air Injection Check Valve Gasket
