Secondary Air Injection Check Valve Removal - Bank 2 Emissions Air Injection

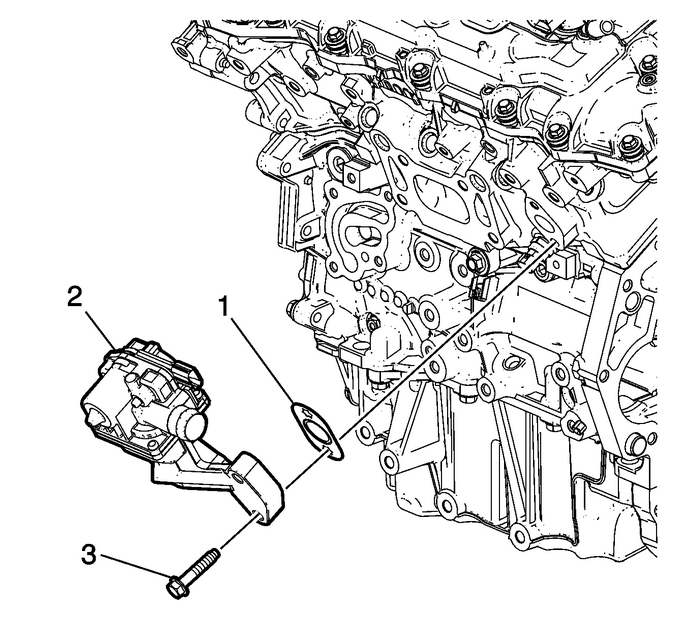

Remove the secondary air injection-(SAI) checkvalve bolts-(3).Remove the SAI check valve-(2).Remove and discard the SAI check valvegasket-(1).
