Secondary Air Injection Check Valve Installation - Bank 2 Emissions Air Injection

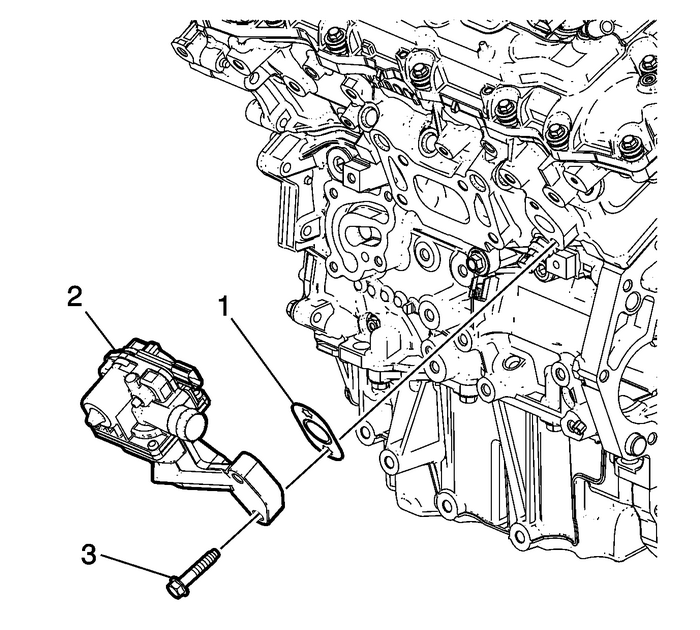

Install the NEW secondary air injection-(SAI)check valve gasket-(1).Install the SAI check valve-(2).

Caution:Refer toFastener Caution.

Install the SAI check valve bolts-(3) and tightento25-Y(18-lb-ft).
