Secondary Air Injection Check Valve Installation - Bank 1 Emissions Air Injection

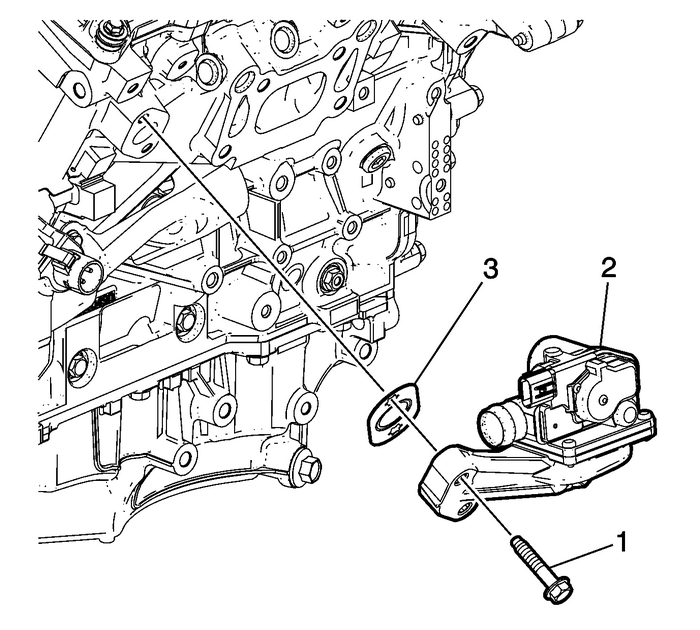

Install the NEW secondary air injection (SAI) check valvegasket-(3).Install the SAI check valve-(2).

Caution:Refer toFastener Caution.

Install the SAI check valve bolts-(1) and tightento25-Y(18-lb-ft).

Intake Manifold Assemble Intake and Forced Induction Intake Manifold

Install the NEW plastic compressionlimiters-(1).Install the NEW lower intake manifoldgaskets-(3).Install the lower intake manifold-(2) andbolts-(1).Caution:Refer toFastener Caution.Tighten the lower i ...

Secondary Air Injection Check Valve Installation - Bank 2 Emissions Air Injection

Install the NEW secondary air injection-(SAI)check valve gasket-(1).Install the SAI check valve-(2).Caution:Refer toFastener Caution.Install the SAI check valve bolts-(3) and tightento25-Y(18-lb-ft). ...
