Chevrolet Equinox Owners Manual: Seat Adjustment

Chevrolet Equinox Owners Manual / Seats and Restraints / Front Seats / Seat Adjustment

Warning You can lose control of the vehicle if you try to adjust a driver seat while the vehicle is moving.

Adjust the driver seat only when the vehicle is not moving.

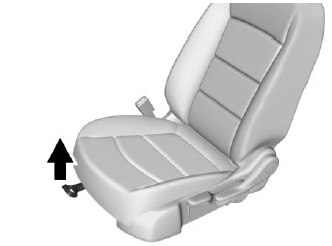

Seat Adjustment

To adjust the seat position:

Pull the handle at the front of the seat cushion to unlock it.
Move the seat forward or rearward and release the handle.
Try to move the seat back and forth to be sure it is locked in place.

Seat Height Adjuster

Seat Height Adjuster

Move the lever up or down to raise or lower the seat.

Power Seat Adjustment

To adjust a power seat, if equipped: Move the seat forward or rearward by sliding the control forward or rearward. Raise or lower the front part of the seat cushion by movi ...
