Chevrolet Equinox Owners Manual: Roof Rack System

Warning If something is carried on top of the vehicle that is longer or wider than the roof rack-like paneling, plywood, or a mattress-the wind can catch it while the vehicle is being driven. The item being carried could be violently torn off, and this could cause a collision and damage the vehicle. Never carry something longer or wider than the roof rack on top of the vehicle unless using a GM certified accessory carrier.

If equipped, the roof rack can be used to load items. For roof racks that do not have crossrails included, GM certified crossrails can be purchased as an accessory.

If equipped with a roof rail docking station, roof rack side rails may be installed. See your dealer.

Caution Loading cargo on the roof rack that weighs more than 100 kg (220 lb) or hangs over the rear or sides of the vehicle may damage the vehicle. Load cargo so that it rests evenly between the crossrails, making sure to fasten cargo securely.

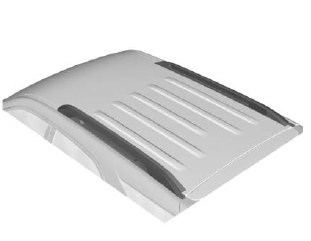

Roof Rack System

To prevent damage or loss of cargo when driving, check to make sure crossrails and cargo are securely fastened. Loading cargo on the roof rack will make the vehicle's center of gravity higher. Avoid high speeds, sudden starts, sharp turns, sudden braking, or abrupt maneuvers; otherwise it may result in loss of control. If driving for a long distance, on rough roads, or at high speeds, occasionally stop the vehicle to make sure the cargo remains in its place. Do not exceed the maximum vehicle capacity when loading the vehicle. For more information on vehicle capacity and loading, see Vehicle Load Limits.

Cargo Tie-Downs
Convenience Net Retainers Cargo Tie-Downs The vehicle may be equipped with two cargo tie-downs and two convenience net retainers in the rear compartment. ...
