Rear Wheel Speed Sensor Replacement

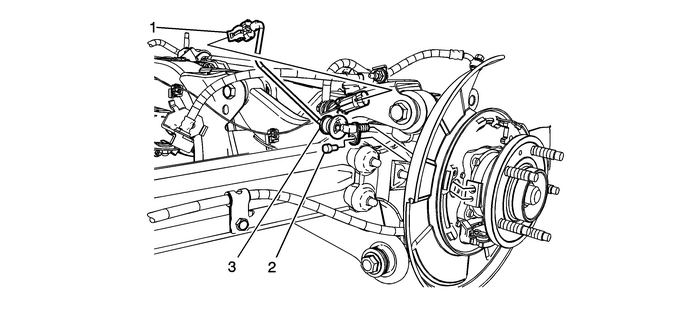

Callout

Component Name

Warning:Refer toBrake Dust Warning. Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the tire and wheel. Refer toTire and Wheel Removal and Installation.Remove the park brake shoes. Refer toParking Brake Shoe Replacement.
1	Wheel Speed Sensor Electrical Connector
2	Wheel Speed Sensor Bolt Caution:Refer toFastener Caution. Tighten 10-Y(89-lb-in)
3	Wheel Speed Sensor ProcedureRelease the wheel speed sensor electrical harness grommetfrom the backing plate.Route the wheel speed sensor electrical harness through thebacking plate.
