Rear Object Alarm Control Module Replacement

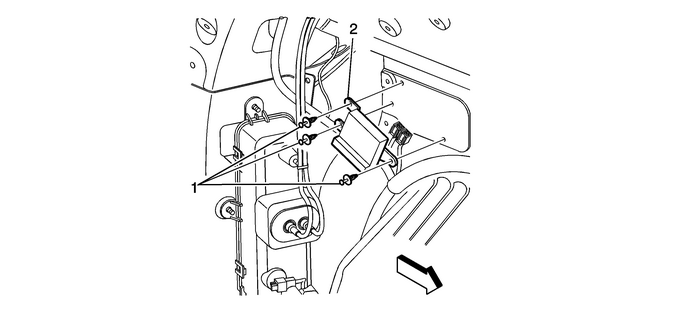

Callout

Component Name

Preliminary Procedure

Remove the left body side trim panel. Refer toBody Side Trim Panel Replacement - Left Side.

Rear Object Alarm Module Retainers (Qty:-3)

Rear Object Alarm Module

ProcedureDisconnect the electrical connectors.For programming and set up, refer toControl Module References

Information Center Telltale Assembly Replacement

Information Center Telltale Assembly ReplacementCalloutComponent Name1Information Center Telltale Bezel2Information Center Telltale Assembly Screws(Qty:-2)Caution:Refer toFastener Caution.Tighten2-Y(1 ...

Object Detection Description and Operation (Rear Vision Camera, UVC)

Rear Vision Camera System OperationThe rear vision camera system consists of a video camera located at the rear of thevehicle and the radio.When the transmission is placed into REVERSE, a 12-volt sign ...
