Chevrolet Equinox Service Manual: Rear Differential Clutch Control Module Replacement Differentials Rear Diff
| Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the spare tire.Remove the exhaust system. Refer toExhaust Muffler Replacement.Support and lower the rear differential assembly. Refer toDifferential Replacement. | |

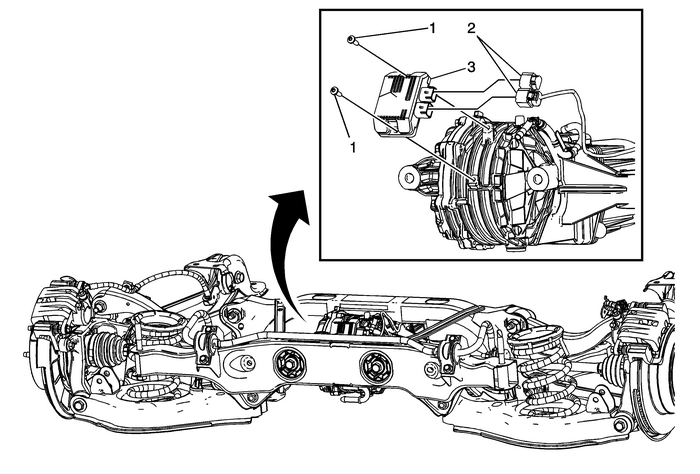

1 | Clutch Drum Control Module Screw (Qty:-2) Caution:Refer toFastener Caution. Tighten15-Y (133-lb-in) |
2 | Clutch Drum Control Module Connector |
3 | Clutch Drum Control Module Procedure Note:Record the Clutch Control Module RDS number. It is located on the Clutch Control Moduleharness connector. This number will be needed for the calibration procedure. Program the clutch control module. Refer toControl Module References. |
