Reaction Carrier Hub and 2-6 Clutch Plate Removal Automatic Transmission Unit

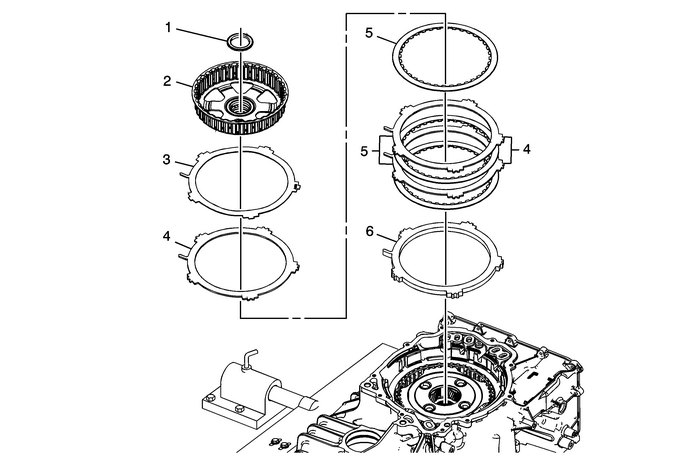

Reaction Carrier Hub and 2-6 Clutch Plate Removal

Callout

Component Name

1

2–6 Clutch Hub Thrust Bearing Assembly

Note:The 2–6 clutch hub thrust bearing assembly may be stuck to the reaction carrier hubassembly.

2

Reaction Sun Gear Assembly

3

2–6 Clutch Cushion Spring

4

2–6 Clutch Plate (Qty: 3)

5

2–6 Clutch (w/Friction Material) Plate Assembly (Qty: 3)

6

2–6 Clutch Backing Plate
