Reaction Carrier Cleaning and Inspection Automatic Transmission Unit

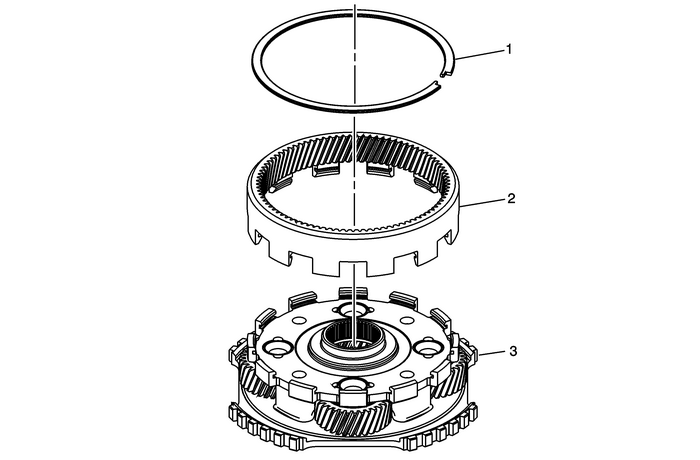

Reaction Carrier Cleaning and Inspection

Callout

Component Name

Preliminary Procedures Clean and Inspect the carrier as an assembly. If wear ordamage is found disassemble to replace the affectedcomponent.
1	Input Internal Gear Retaining Ring
2	Input Internal Gear
3	Reaction Carrier Assembly

Range Selector Lever Cable Bracket Replacement Automatic Transmission Unit

Range Selector Lever Cable Bracket ReplacementCalloutComponent NamePreliminary ProceduresSet the park brake and chock the wheels.Remove the battery tray. Refer toBattery Tray Replacement.1Transmission ...

Reaction Carrier Hub and 2-6 Clutch Plate Removal Automatic Transmission Unit

Reaction Carrier Hub and 2-6 Clutch Plate RemovalCalloutComponent Name12–6 Clutch Hub Thrust Bearing AssemblyNote:The 2–6 clutch hub thrust bearing assembly may be stuck to the reaction carrier hu ...
