Radio Windshield Side Garnish Molding Speaker Replacement

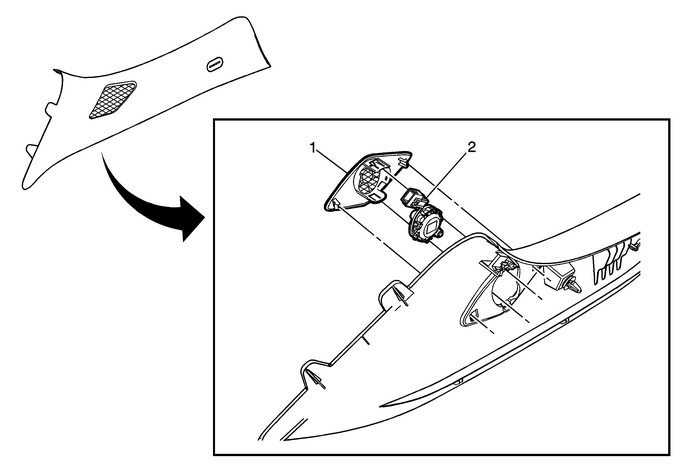

Callout

Component Name

Preliminary Procedure

Remove the windshield garnish molding. Refer toWindshield Side Garnish Molding Replacement.

Radio Windshield Side Garnish Molding Speaker Grille

Radio Windshield Side Garnish Molding Speaker

ProcedureDisconnect the electrical connector.Unsnap speaker from grille.
