Radio, Video, and Audio Player and Navigation Information Display Replacement

Callout

Component Name

Preliminary Procedure

Remove the radio control assembly. Refer toRadio Control Assembly Replacement.

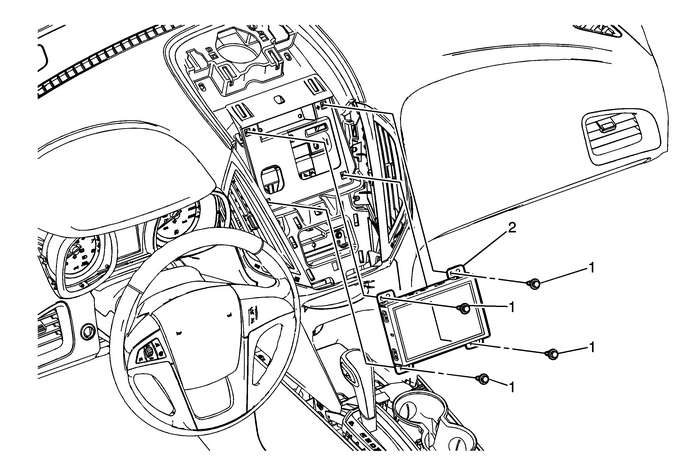

Radio, Video, Audio Disc Player, and Navigation DisplayScrews (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

Radio, Video, Audio Disc Player, and NavigationDisplay

Procedure

Refer toControl Module Referencesfor programming and set upinformation.
