Radio Control Assembly Replacement Entertainment Audio

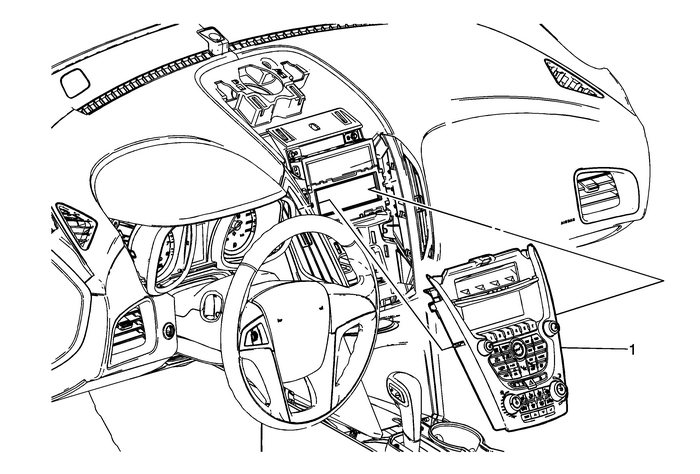

Radio Control Assembly Replacement

Callout

Component Name

Preliminary Procedure

For vehicles equipped with the instrument panel center trimplate. Refer toInstrument Panel Upper Center Trim Panel Replacementfor removal. For vehiclesequipped with the instrument panel center compartment. Refer toInstrument Panel Center Compartment Replacementfor removal.

Radio Control Assembly

ProcedureUse a flat-bladed plastic trim tool in order torelease the retainer clips securing the AM/FM stereo and clock andaudio disc player radio control assembly to the instrumentpanel.Disconnect the electrical connections.When replacing the radio control assembly, transfer allnecessary components.Refer toControl Module Referencesfor programming and setupinformation.
