Radio and Telephone Control Switch Replacement (NK5)

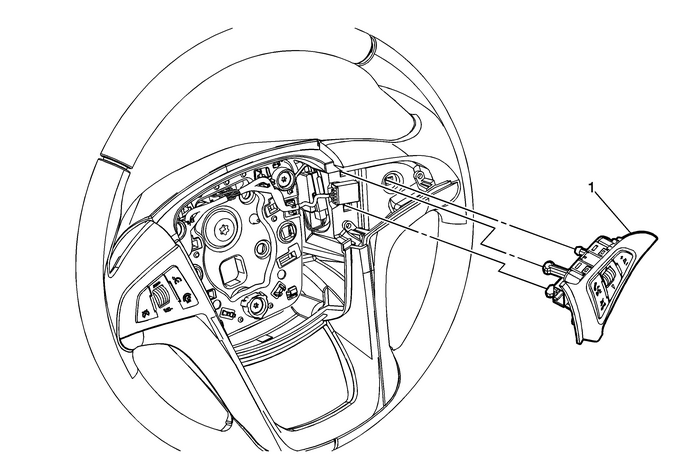

Radio and Telephone Control Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the inflatable restraint steering wheel module. RefertoAirbag Steering Wheel Module Replacement.

1

Radio and Telephone Control Switch Assembly

ProcedureUse flat bladed tool to release the switch from steeringwheel.Disconnect the electrical connector.
