Preliminary ProceduresDrain the coolant. Refer toCooling System Draining and Filling.Remove the coolant recovery reservoir vent hose. Refer toCoolant Recovery Reservoir Vent Hose Replacement.Remove the coolant recovery reservoir outlet hose. Refer toCoolant Recovery Reservoir Outlet Hose Replacement. | |

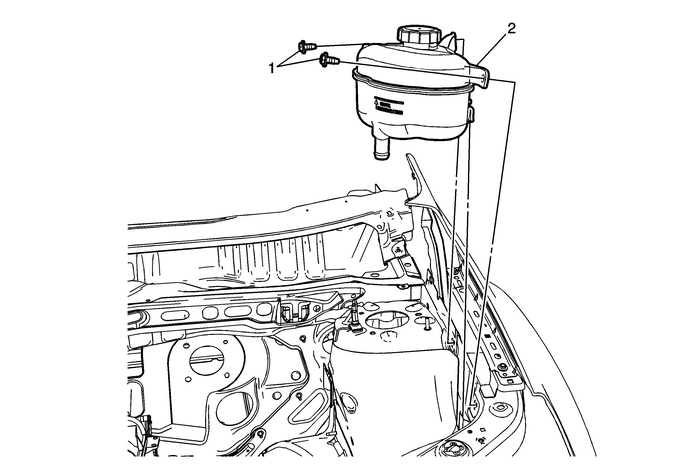

1 | Radiator Surge Tank Bolt (Qty:-2) Caution:Refer toFastener Caution. Tighten9-Y(80-lb-in) |
2 | Radiator Surge Tank |
Lubrication Description
A structural diecast aluminum oil pan incorporates an oil suction tube and a windagetray. The oil suction tube is bolted into the oil pan and seals to the bottom of theblock with O-ring gasket. The windage tray is bolted to the upper portion of the oilpan and reduces friction losses at high speed.A ...
