Radiator Drain Cock Replacement Engine Cooling Radiator

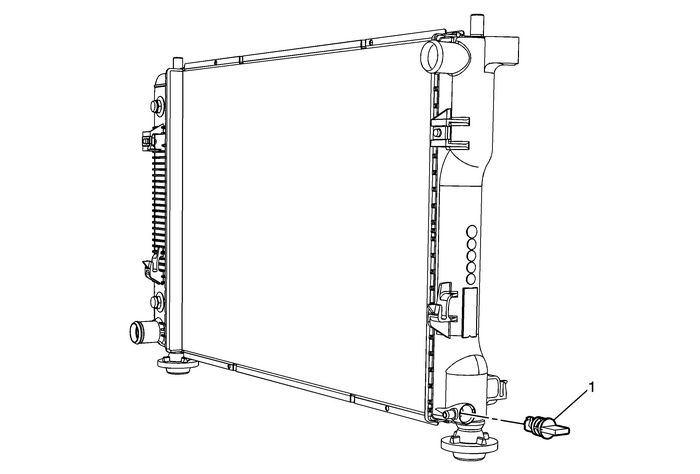

Radiator Drain Cock Replacement

Callout

Component Name

Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the VehiclePlace a drain pan under the right side lower radiatormount.
1	Radiator Drain Cock
