Radiator Air Upper Baffle and Deflector Replacement Engine Cooling Radiator

Radiator Air Upper Baffle and Deflector Replacement

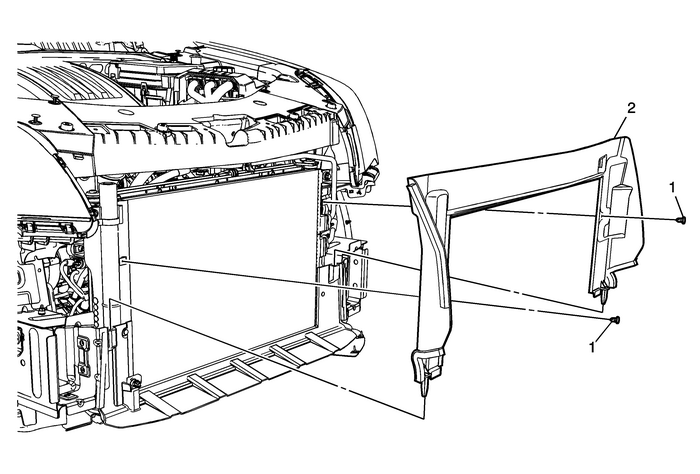

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer toFront Bumper Fascia Replacement

1

Radiator Air Upper Baffel And Deflector Retainers(Qty-2)

2

Radiator Air Upper Baffel And Deflector
