Chevrolet Equinox Service Manual: Primary Timing Chain Guide Replacement - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

Chevrolet Equinox Service Manual / Powertrain / Engine / Primary Timing Chain Guide Replacement - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.

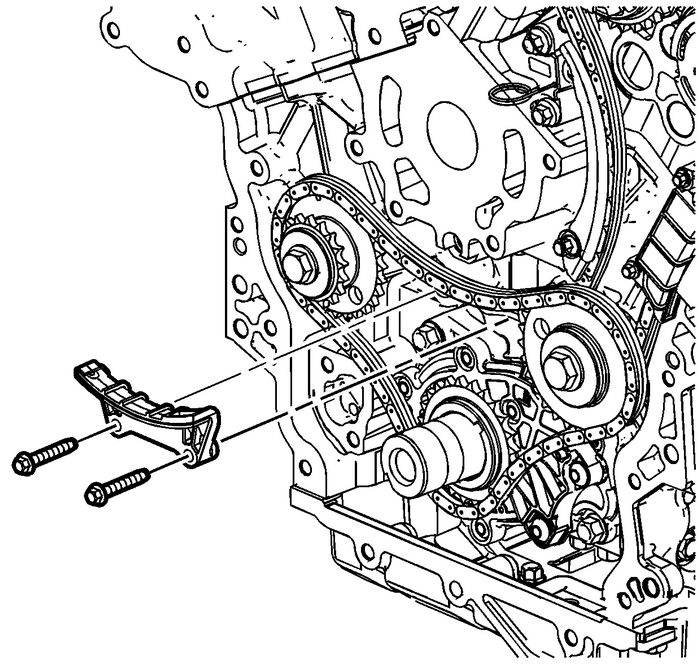

Primary Timing Chain Guide Replacement - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

Remove the primary camshaft drive chain tensioner. Refer toPrimary Camshaft Intermediate Drive Chain Tensioner Replacement.Remove the primary upper camshaft drive chain guide. Refer toPrimary Timing Chain Guide Removal - Upper.Installation Procedure

Primary Timing Chain Guide Replacement - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

Install the primary upper camshaft drive chain guide. Refer toPrimary Timing Chain Guide Installation - Upper.Install the primary camshaft drive chain tensioner. Refer toPrimary Camshaft Intermediate Drive Chain Tensioner Installation.Install the engine front cover. Refer toEngine Front Cover Replacement.

Secondary Timing Chain Tensioner Shoe Replacement - Left Side Valvetrain Valvetrain Timing Timing Belt Tensioner

Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.Remove the left bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Removal - ...

Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Right Side Valvetrain Camshaft

Removal ProcedureRemove the engine front cover. Refer toEngine Front Cover Replacement.Remove the right bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Removal - ...

Other materials:

Primary Camshaft Intermediate Drive Chain Tensioner Removal Valvetrain Camshaft
Remove the primary camshaft drive chain tensionerbolts.Remove the primary camshaft drive chain tensioner.Remove and discard the primary camshaft drive chain tensionergasket.Inspect the primary camshaft drive chain tensioner mountingsurface on the engine block for burrs or any defects that woulddegra ...
