Removal ProcedureRemove the primary camshaft drive chain tensioner. Refer toPrimary Camshaft Intermediate Drive Chain Tensioner Replacement.

Primary Timing Chain Guide Replacement - Lower Valvetrain Valvetrain Timing Timing Belt/Chain

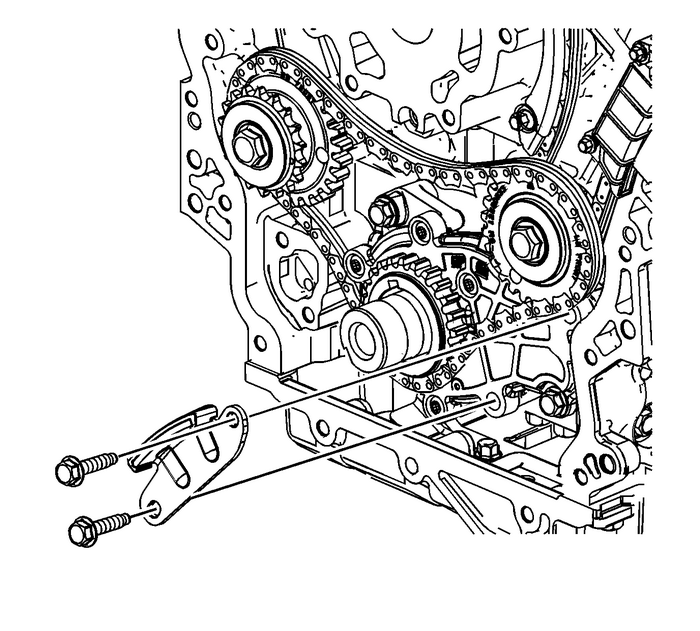

Remove the primary camshaft drive chain lower guidebolts.Remove the primary camshaft drive chain lower guide.Installation Procedure

Primary Timing Chain Guide Replacement - Lower Valvetrain Valvetrain Timing Timing Belt/Chain

Position the primary camshaft drive chain lower guide to theoil pump.

Caution:Refer toFastener Caution.

Install the primary camshaft drive chain lower guide boltsand tighten to25-Y(18-lb-ft).Install the primary camshaft drive chain tensioner. Refer toPrimary Camshaft Intermediate Drive Chain Tensioner Replacement.
