Primary Timing Chain Guide Removal - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

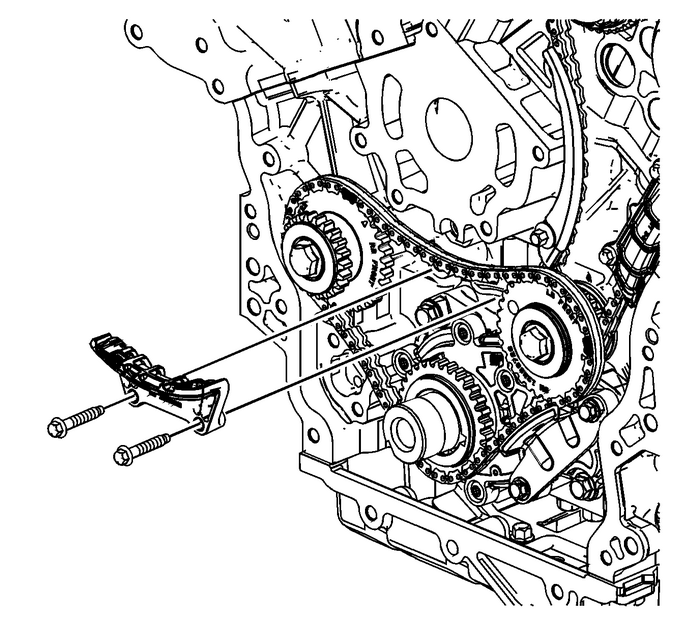

Remove the primary camshaft drive chain upper guidebolts.Remove the primary camshaft drive chain upper guides.
