Primary Timing Chain Guide Removal - Lower Valvetrain Valvetrain Timing Timing Belt/Chain

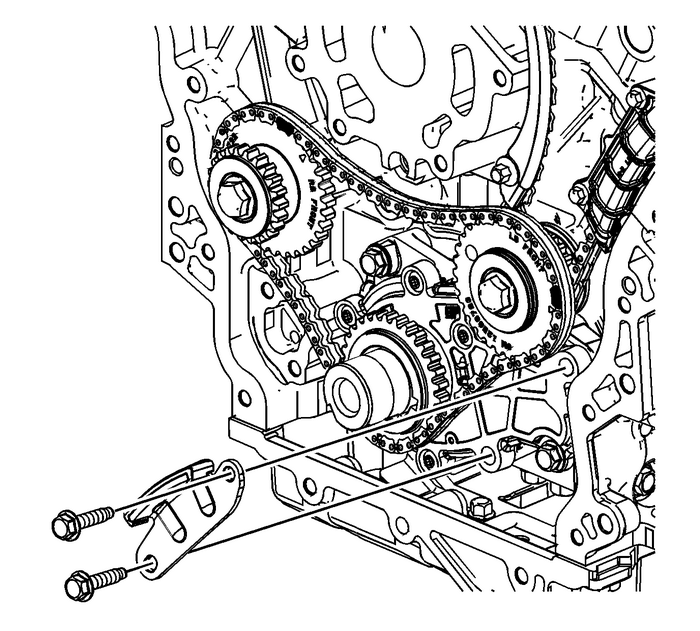

Remove the primary camshaft drive chain lower guidebolts.Remove the primary camshaft drive chain lower guide.

Primary Camshaft Intermediate Drive Chain Removal Valvetrain Camshaft

Remove the primary camshaft drive chain. ...

Primary Camshaft Intermediate Drive Chain Tensioner Removal Valvetrain Camshaft

Remove the primary camshaft drive chain tensionerbolts.Remove the primary camshaft drive chain tensioner.Remove and discard the primary camshaft drive chain tensionergasket.Inspect the primary camshaf ...
