Chevrolet Equinox Service Manual: Primary Timing Chain Guide Installation - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

Chevrolet Equinox Service Manual / Powertrain / Engine / Primary Timing Chain Guide Installation - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

Primary Timing Chain Guide Installation - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

Ensure the upper primary camshaft drive chainguide-(3) is being installed.

Primary Timing Chain Guide Installation - Upper Valvetrain Valvetrain Timing Timing Belt/Chain

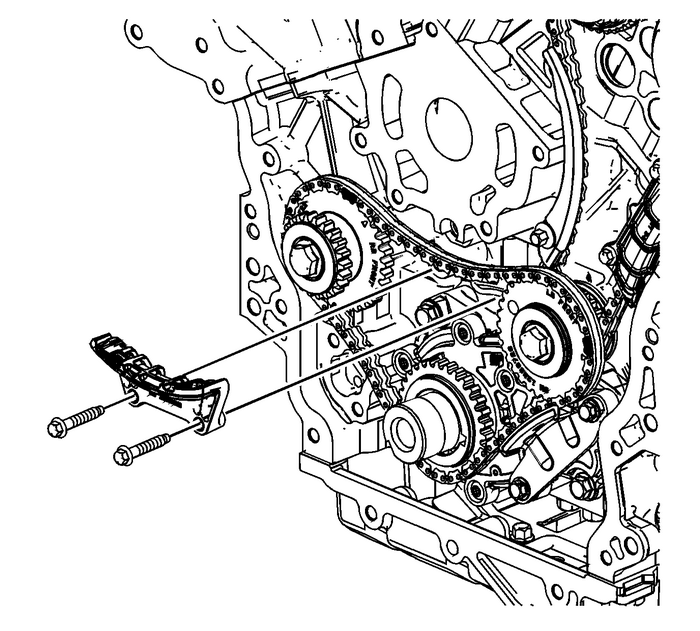

Install the upper primary camshaft drive chain guides.

Caution:Refer toFastener Caution.

Install the upper primary camshaft drive chain guide boltsand tighten to25-Y(18-lb-ft).
Camshaft Position Actuator Installation - Right Side Intake Valvetrain Camshaft
Ensure the proper camshaft position actuator is installed.Observe the body of the camshaft position actuator for the“IN” marking-(3). The marking is foran intake camshaft position actuator.Caution ...

Evaporative Emission Canister Purge Solenoid Valve Replacement Emissions Evap Evap Canister Purge
Evaporative Emission Canister Purge Solenoid Valve ReplacementCalloutComponent NamePreliminary ProcedureRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.1BoltCaution:Refer t ...
