Primary Timing Chain Guide Installation - Lower Valvetrain Valvetrain Timing Timing Belt/Chain

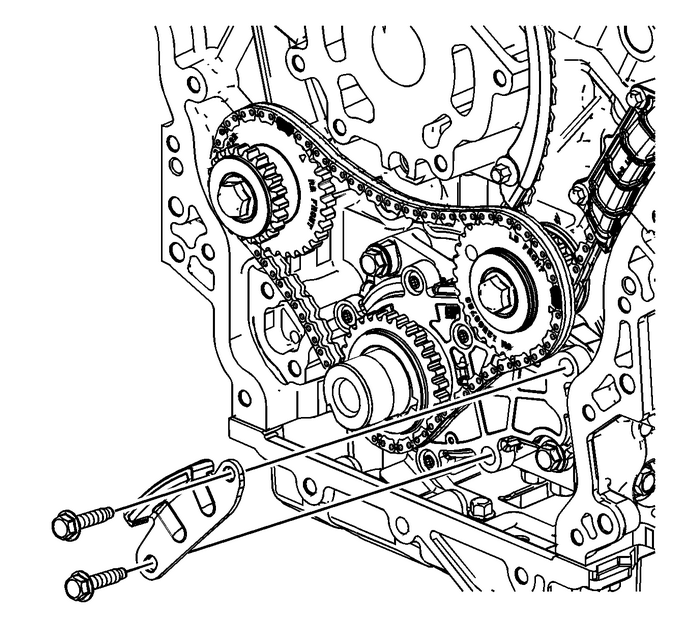

Position the primary camshaft drive chain lower guide to theoil pump.

Caution:Refer toFastener Caution.

Install the primary camshaft drive chain lower guide boltsand tighten to25-Y(18-lb-ft).

Oil Filter Adapter Installation Engine Lubrication Oil Filter

Position a NEW oil filter adapter gasket onto the oil filteradapter.Place the oil filter adapter into position.Caution:Refer toFastener Caution.Install the oil filter adapter bolts. Ensure the longerb ...

Positive Crankcase Ventilation Tube Replacement - Front Emissions PCV

..Positive Crankcase Ventilation Tube Replacement - FrontCalloutComponent NamePreliminary ProcedureRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.1Positive Crankcase Venti ...
