Power Steering Fluid Reservoir Replacement - Lower Hydraulic Steering Steering Fluid Reservoir

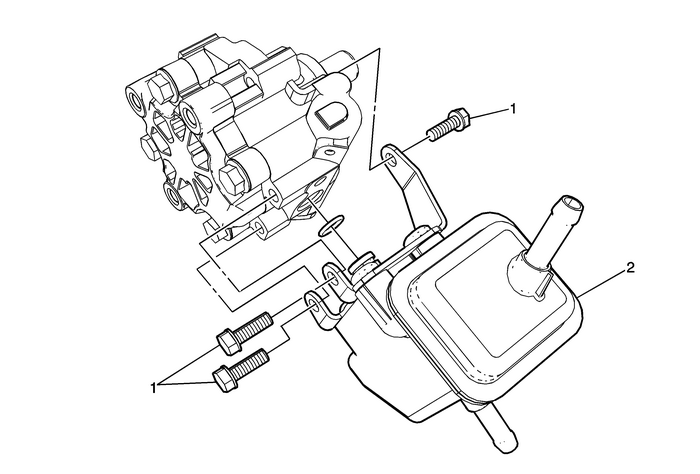

Power Steering Fluid Reservoir Replacement - Lower

Callout

Component Name

Preliminary Procedure

Remove the power steering pump pulley. Refer toPower Steering Pump Pulley Replacement.

1

Power Steering Fluid Reservoir Bolt

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

2

Power Steering Fluid Reservoir

Procedure

Install a NEW power steering pump seal.
