Positive Crankcase Ventilation Tube Replacement - Rear Emissions PCV

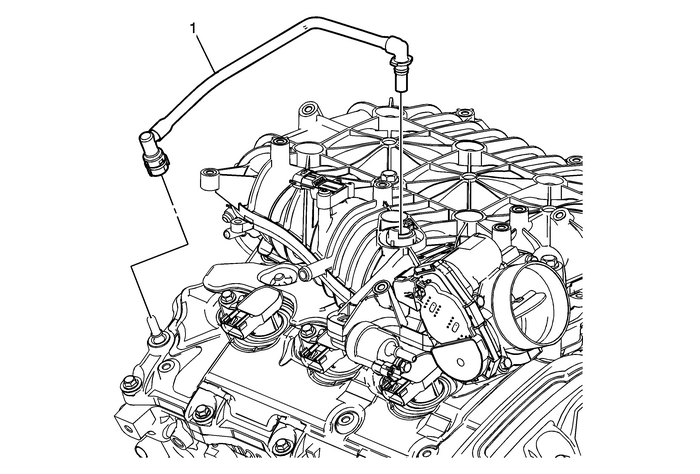

Positive Crankcase Ventilation Tube Replacement - Rear

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

Positive Crankcase Ventilation Tube

ProcedureDisconnect the electrical connectors, as needed.Transfer components as necessary.
