Positive Crankcase Ventilation Tube Replacement - Front Emissions PCV

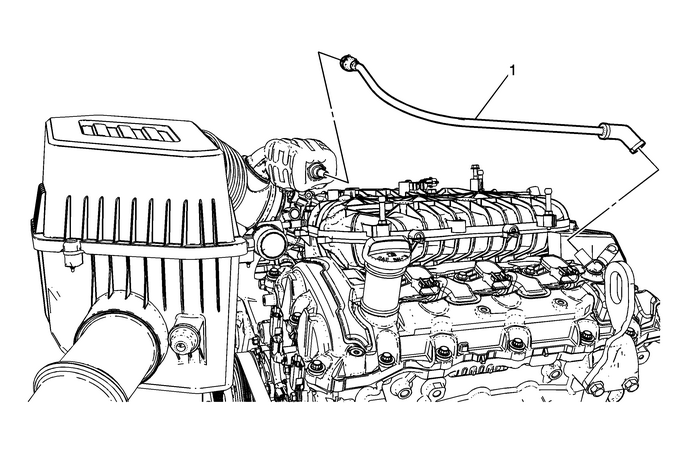

Positive Crankcase Ventilation Tube Replacement - Front

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

Positive Crankcase Ventilation Tube
