Parking Brake Indicator Switch Replacement Parking Brake

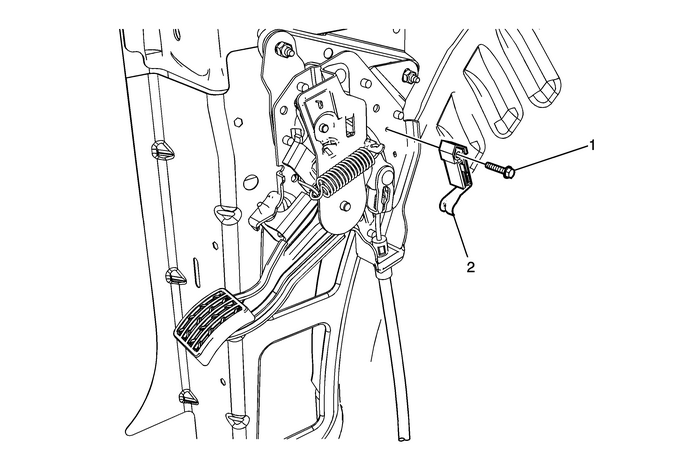

Parking Brake Indicator Switch Replacement

Callout

Component Name

Preliminary ProceduresRemove the left side body hinge pillar trim panel. Refer toBody Hinge Pillar Trim Panel Replacement.Disconnect the park brake warning indicator switch electricalconnector.

1

Park Brake Warning Lamp Switch Bolt

Caution:Refer toFastener Caution.

Tighten

4-Y(35-lb-in)

2

Park Brake Warning Lamp Switch
