Outside Rearview Mirror Replacement (Terrain) Rearview

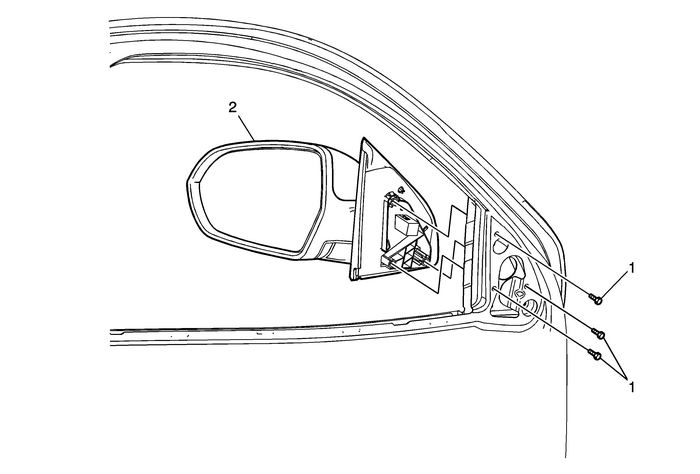

Outside Rearview Mirror Replacement

Callout

Component Name

Preliminary ProceduresPlace the window in the full down position.Remove the front side door garnish molding. Refer toFront Side Door Garnish Molding Replacement.

Outside Rearview Mirror Bolt (Qty:-3)

Warning:Refer toGlass and Sheet Metal Handling Warning.

Caution:Refer toFastener Caution.

Procedure

Disconnect the electrical connector.

Tighten

10-Y(89-lb-in).

Outside Rearview Mirror

Procedure

Inspect the mirror for proper operation before installing thedoor trim panel.
