Outside Rearview Mirror Replacement Rearview

Outside Rearview Mirror Replacement

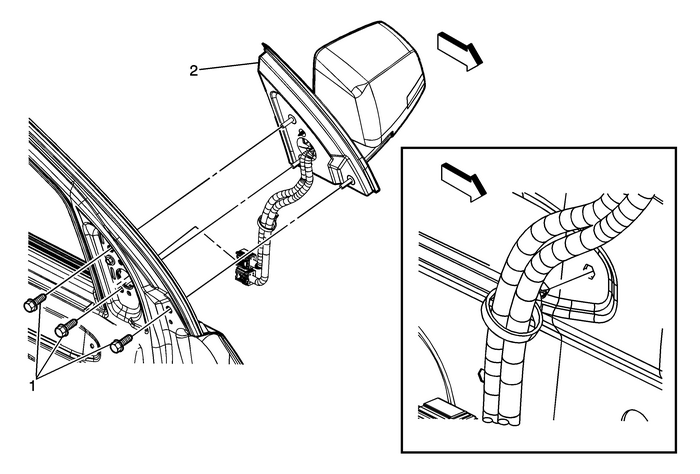

Callout

Component Name

Preliminary ProceduresPlace the window in the fully down position.Remove front door trim panel. Refer toFront Side Door Trim Panel Replacement.Remove the front side door garnish molding. Refer toFront Side Door Garnish Molding Replacement.

Outside Rearview Mirror Bolt (Qty:-3)

Caution:Refer toFastener Caution.

Procedure

Disconnect the electrical connector.

Tighten

10-Y(89-lb-in).

Outside Rearview Mirror

Procedure

Inspect the mirror for proper operation before installing theside door garnish molding and door trim panel.

Outside Rearview Mirror Replacement (Terrain) Rearview

Outside Rearview Mirror ReplacementCalloutComponent NamePreliminary ProceduresPlace the window in the full down position.Remove the front side door garnish molding. Refer toFront Side Door Garnish Mol ...

Outside Mirror Description and Operation (With LTZ/SLT)

Power Mirror System ComponentsThe power mirror system consists of the followingcomponents:Memory Seat ModuleOutside Rearview Mirror SwitchLeft Mirror Control ModulePassenger Window SwitchLeft Outside ...
