Outside Rearview Mirror Remote Control Switch Replacement Rearview

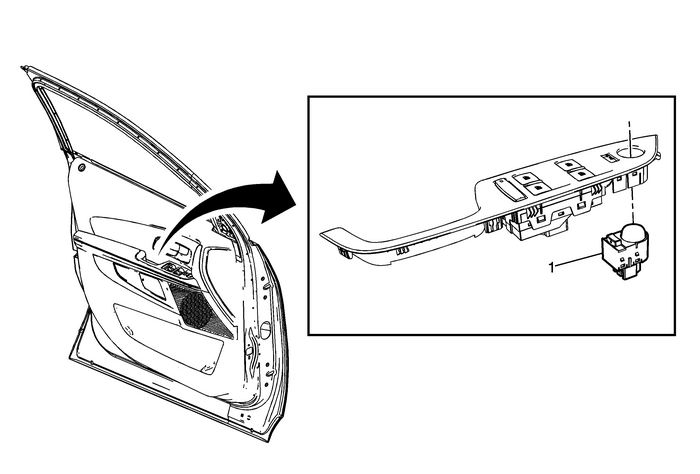

Outside Rearview Mirror Remote Control Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the front side door accessory switch mount plate.Refer toFront Side Door Accessory Switch Mount Plate Replacement.

1

Outside Remote Control Rearview Mirror Switch Assembly

ProcedureDisconnect the electrical connector.Refer toControl Module Referencesfor programming and setupinformation.
