Outside Rearview Mirror Inner Actuator Replacement Rearview

Outside Rearview Mirror Inner Actuator Replacement

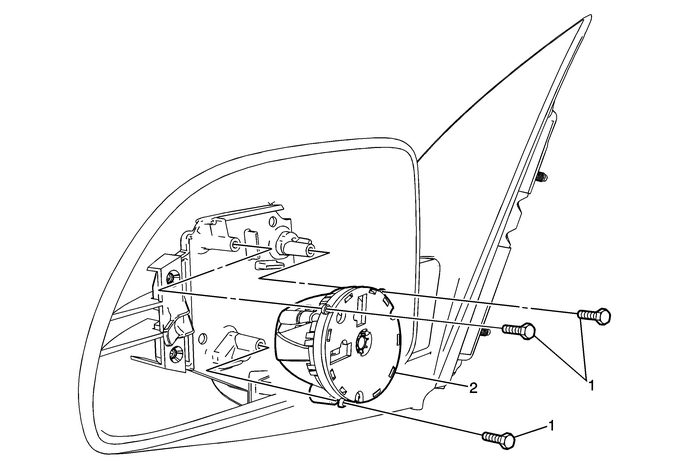

Callout

Component Name

Preliminary Procedure

Remove the outside rearview mirror glass. Refer toOutside Rearview Mirror Glass Replacement.

Outside Rearview Mirror Inner Actuator Screws(Qty:-3)

Warning:Refer toGlass and Sheet Metal Handling Warning.

Caution:Refer toFastener Caution.

Procedure

Disconnect the electrical connector.

Tighten

5-Y(44-lb-in)

Outside Rearview Mirror Inner Actuator

ProceduresWhen installing, align the retainers on the mirror glass withthe motor retainers.With the palm of your hand push inward until the glass lockin place.Inspect the mirror actuator for proper operation beforeinstalling the outside rearview mirror glass.
