Outside Rearview Mirror Glass Replacement Rearview

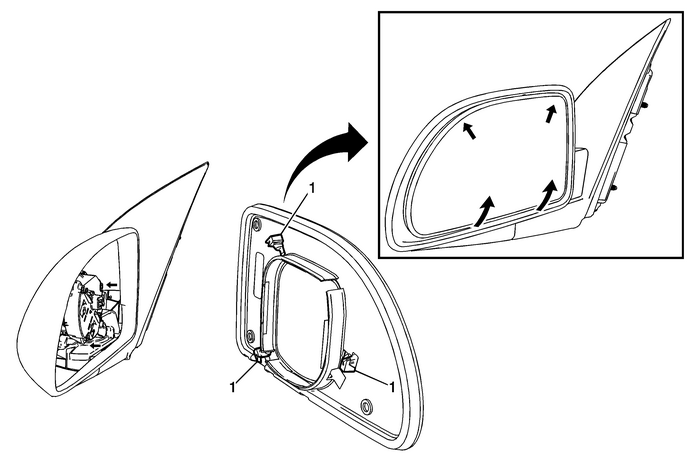

Outside Rearview Mirror Glass Replacement

Callout

Component Name

1

Outside Rearview Mirror Glass

Warning:Refer toGlass and Sheet Metal Handling Warning.

ProceduresPush the top center of the mirror inward, grasp the bottomcenter of mirror pulling rearward until the mirror releases fromthe motor.Disconnect the electrical connectors from the back of themirror, if equipped.When installing, align the retainers on the mirror glass withthe motor retainers.With the palm of your hand push inward until the glass lockin place.Inspect the mirror for proper operation before installing thedoor trim panel.
