Output Speed Sensor Replacement Automatic Transmission Unit

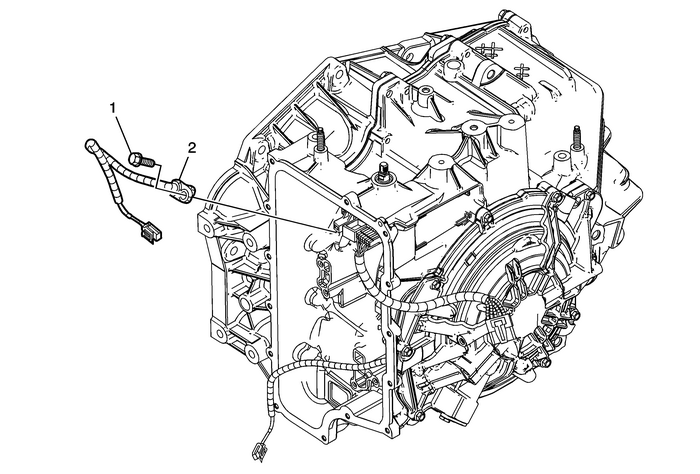

Output Speed Sensor Replacement

Callout

Component Name

Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the control valve lower body and upper body. Refer toControl Valve Lower Body and Upper Body Replacement.

Output Speed Sensor Bolt M6 x 25

Caution:Refer toFastener Caution.

Tighten

12-Y (106-lb-in)

Output Speed Sensor

Procedure

Perform the service programming system procedure. Refer toService Programming System (SPS).

Note:After an internal transmission repair or internal part replacement the service programmingsystem procedure should be performed.

Output Speed Sensor Replacement Automatic Transmission Unit

Output Speed Sensor ReplacementCalloutComponent NamePreliminary ProcedureRemove the control solenoid valve and transmission control module assembly. RefertoControl Valve Body Replacement.1Output Speed ...
