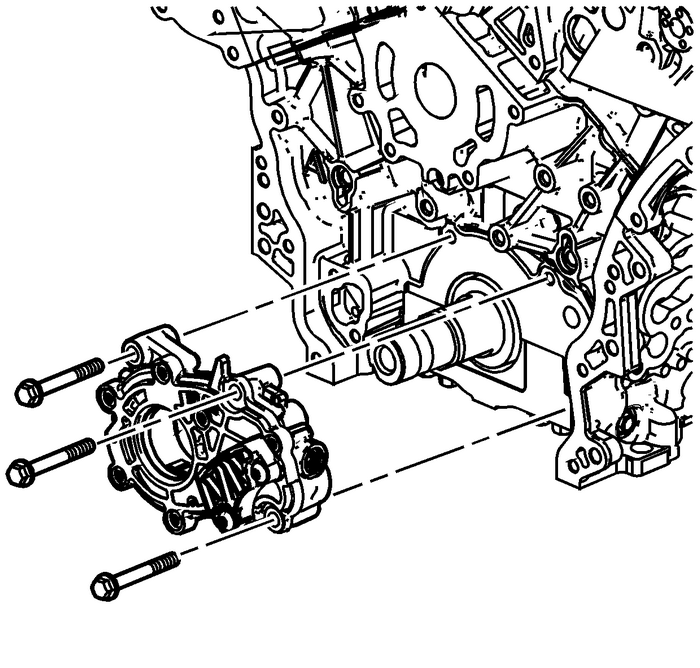

Removal Procedure
Note:Do not remove the left bank idler sprocket.
Remove the primary timing chain. Refer toPrimary Camshaft Drive Chain and Sprockets Replacement.Remove the crankshaft sprocket. Refer toCrankshaft Sprocket Removal.Remove the oil pump bolts and the oil pump.Installation ProcedureInstall the oil pump and bolts. Refer toOil Pump InstallationInstall the crankshaft sprocket. Refer toCrankshaft Sprocket Installation.Install the primary timing chain. Refer toPrimary Camshaft Drive Chain and Sprockets Replacement.
