Oil Pan Removal Engine Lubrication Oil Sump/Pan

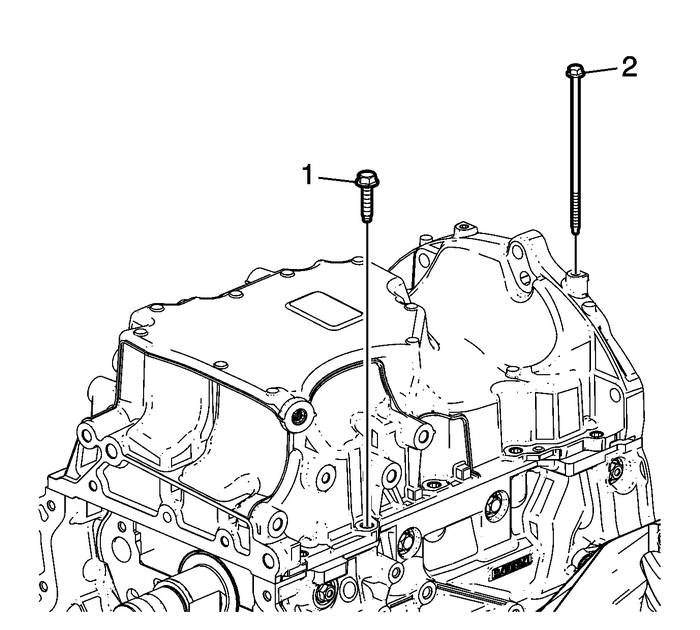

Remove the oil pan bolts-(1)and-(2).Using the pry points located at the edge of the oil panseparate the RTV sealant.

Oil Pan Removal Engine Lubrication Oil Sump/Pan

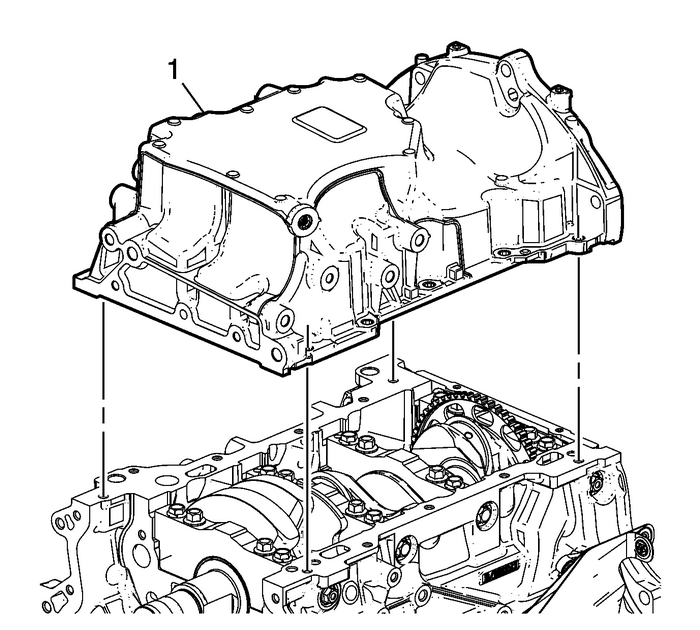

Remove the oil pan-(1) from the block.

Oil Level Indicator and Tube Removal Engine Lubrication Oil Level Indicator Tube

Remove the oil level indicator tube bracketbolt-(1).Remove the oil level indicator and tube-(2) bysliding the tube out from the lower crankcase hole.Remove and discard the O-ring from the oil level in ...

Oil Pan Removal Engine Lubrication Oil Sump/Pan

Remove the oil pan bolts.Remove the oil pan at pry points. ...
